Virtually Instructional

Lennart Fridén

codecoupled.org | @DevLCSC | github.com/DevL

ElixirConf 2015, Austin, TX

Hello ElixirConf


defmodule Virtually do
  def instructional do
    "Hello ElixirConf"
  end
end

BEAM file


$ hexdump -C Elixir.Virtually.beam


00000000  46 4f 52 31 00 00 04 dc  42 45 41 4d 45 78 44 63  FOR1....BEAMExDc


00000090                                       41 74 6f 6d              Atom
000000a0  00 00 00 60 00 00 00 08  10 45 6c 69 78 69 72 2e  ...`.....Elixir.
000000b0  56 69 72 74 75 61 6c 6c  79 08 5f 5f 69 6e 66 6f  Virtually.__info
000000c0  5f 5f 09 66 75 6e 63 74  69 6f 6e 73 06 6d 61 63  __.functions.mac
000000d0  72 6f 73 06 65 72 6c 61  6e 67 0f 67 65 74 5f 6d  ros.erlang.get_m
000000e0  6f 64 75 6c 65 5f 69 6e  66 6f 0d 69 6e 73 74 72  odule_info.instr
000000f0  75 63 74 69 6f 6e 61 6c  0b 6d 6f 64 75 6c 65 5f  uctional.module_
00000100  69 6e 66 6f                                       info


00000100              43 6f 64 65  00 00 00 7b 00 00 00 10       Code...{....
00000110  00 00 00 00 00 00 00 99  00 00 00 0c 00 00 00 04   ................
00000120  01 10 99 00 02 12 22 10  01 20 30 55 03 3b 03 55   ......".. 0U.;.U
00000130  17 40 32 35 42 45 01 30  40 47 00 03 13 01 40 40   .@25BE.0@G....@@
00000140  02 03 13 01 50 40 03 13  40 12 03 99 00 4e 20 00   ....P@..@....N .
00000150  01 60 99 10 02 12 72 00  01 70 40 47 10 03 13 01   .`....r..p@G....
00000160  80 99 00 02 12 82 00 01  90 40 12 03 99 00 4e 10   .........@....N.
00000170  10 01 a0 99 00 02 12 82  10 01 b0 40 03 13 40 12   ...........@..@.
00000180  03 99 00 4e 20 00 03 00                            ...N ...

Erlang assembly excerpt


$ ERL_COMPILER_OPTIONS="'S'" elixirc virtually.ex


  {move,{literal,{instructional,[{line,2}],nil}},{x,3}}.
  {move,{atom,def},{x,1}}.
  {move,{literal,[{do,<<"Hello ElixirConf">>}]},{x,4}}.
  {move,{integer,2},{x,0}}.
  {line,[{location,"virtually.ex",2}]}.
  {call_ext,6,{extfunc,elixir_def,store_definition,6}}.
  {move,{literal,<<"000000001574CCC0: i_func_info_IaaI 0 'Elixir.Virtually' instructional 0\n000000001574CCE8: move_return_cr <<\"Hello ElixirConf\">> x(0)\n">>},
        {x,0}}.
  {deallocate,0}.
  return.

Generic BEAM instructions


https://github.com/erlang/otp/blob/master/lib/compiler/src/genop.tab


1:    label/1
2:    func_info/3
3:    int_code_end/0
4:    call/2
5:    call_last/3
6:    call_only/2
...
64:   move/2
65:   get_list/3
66:   get_tuple_element/3
67:   set_tuple_element/3
...
154:  put_map_assoc/5
155:  put_map_exact/5
156:  is_map/2
157:  has_map_fields/3
158:  get_map_elements/3

Instruction transformations

Generic	Transformed
(27) -m_plus/4	i_increment
(57) is_tuple/2 (58) test_arity/3	is_tuple_of_arity

Hello ElixirConf (disassembled)


iex(1)> :erts_debug.df Virtually


(memory address): (instruction)_(operand types) arg0 arg1 ...


000000001574CCC0: i_func_info_IaaI 0 'Elixir.Virtually' instructional 0
000000001574CCE8: move_return_cr <<"Hello ElixirConf">> x(0)

Using it, we can disassemble a loaded module from within a running system. Technically it's three functions, depending on what you wish to disassemble. A module, a function, or a function with a specific arity.

The DF function will save the disassembled code to a .dis file. Opening this, we finally get a glimpse of the language of the BEAM.

Disassembled code follows the following pattern. First we have the memory address of the instruction, here shown as a 64-bit hexadecimal value. Next comes the instruction, consisting of two parts; the instruction name and the number and types of operands accepted. For example, a capital 'I' indicates an integer literal, whereas a lowercase 'a' denotes an atom.

With this we can take a look at the disassembled code.

A thankfully short function, it really only consists of two instructions. The first, "i_func_info" pretty much states that this is the beginning of the function "instructional" which has an arity of nil and resides in the module "Elixir.Virtually". That covers the last three operands, for that instruction. The very first operand is described as, and I quote from my "Erlang on Xen" source, "a mystery coming out of nowhere, probably, needed for NIFs (Native Implemented Functions)".

The second instruction is an example of a super-instruction. It places the binary "Hello ElixirConf" in the first register, X0, and returns it in one go. Normally this would have been a move instruction followed by a return instruction.

Register?

A tiny sliver of memory built into a CPU.

Tiny. But very, very fast to access.

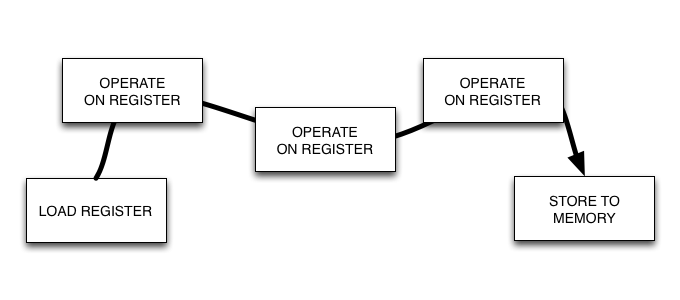

Register-based machine

BEAM, Parrot (Perl 6 et al), Dalvik (Android), Lua

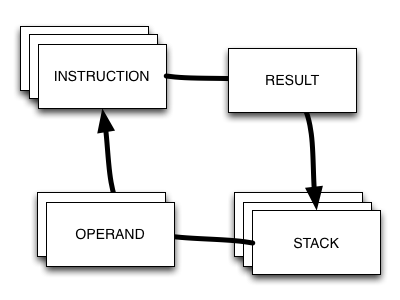

Stack-based machine

JAM (Joe's Abstract Machine), JVM (Java Virtual Machine), Forth

Let's pick apart some Java


public class StackMachine {
  public int doubleSumOf(int a, int b) {
    return 2 * (a + b);
  }
}


$ javac StackMachine.java
$ javap -c StackMachine.class


Code:
  0: iconst_2     // stack = [2]
  1: iload_1      // stack = [a, 2]
  2: iload_2      // stack = [b, a, 2]
  3: iadd         // stack = [(a + b), 2]
  4: imul         // stack = [2 * (a + b)]
  5: ireturn      // stack = []

Don’t worry, we’ll just look at a single method. You can handle it.

This method will add its two arguments and multiply the sum with 2. Essentially what our toy bytecode did in the last example.

Compiling this with the javac compiler results in a class file. Like a BEAM file it contains various sections for constants and actual bytecode. We can see that this is the case by running the class file through the javap disassembler.

I’ve added comments to show you what the stack contains after each instruction has been executed.

ICONST_2 will push the value 2 onto the stack. Notice that the value 2 is inherently encoded in the instruction itself. There are other instructions that will the next piece of bytecode as an immediate value, so instructions and data can be mixed even if they aren't in our example.

Next up we place the two operands on the stack. IADD will then pop them off the stack, add them, and place the result back on the stack. The stack now holds the sum and the value 2.

IMUL will pop the sum and the 2 off the stack, use them as factors, and place the product back on the stack. Finally, IRETURN pops the product off the stack and returns it to the caller of the method.

See, I told you’d survive a little bit of Java.

Ok, so if the basic architecture of a stack-based machine is so simple, and simple as we all know is a good principal to strive for, why is the BEAM register-based?

Obviously there are reasons for adopting the one or the other architecture when designing a virtual machine.

Stack-based vs register-based

Easier to implement
- Simpler compilers
- Simpler interpreters
More compact bytecode
Minimal CPU state

Potentially increased memory access
No virtual registers to map to real ones

Trades performance for ease of implementation

In general, stack-based virtual machines are easier to implement, result in more compact bytecode, simpler compilers, simpler interpreters, and a minimal CPU state to keep track of. You can get away with having a pointer to the next instruction to execute, and a pointer to the top of the stack. That's it.

However, stack-based machines entail a lot of memory access. You'll be constantly loading things onto the stack whereas a register-based machine allows you to put something into the fifth register and keep it there until you need it a number of instructions later. Also, a register-based machine can have an easier time mapping its virtual registers to real registers in the CPU, thus making better use of its capabilities.

In a nutshell, a stack-based VM picks simplicity over performance.

Virtual Machine Showdown: Stack versus Registers

Yunhe Shi

https://www.scss.tcd.ie/publications/tech-reports/reports.07/TCD-CS-2007-49.pdf

Code threading


def decode(instruction, x, y) do
  if instruction == :add do
    x + y
  else if instruction == :subtract do
      x - y
    else if instruction == :divide do
        x / y
      else
        raise "Unknown instruction"
      end
    end
  end
end


def decode(:add, x, y), do: x + y
def decode(:subtract, x, y), do: x - y
def decode(:divide, x, y), do: x / y

In addition to transforming instructions, the beamfile loader also "threads" the code when loading it. Threading in this case does not refer to concurrency, but rather placing the loaded, transformed code in memory so that it in practice behaves like a series of function calls.

Somewhat simplified, think of going through a massive, nested if-else expression, switching on the instruction to figure out what to do with it. If we have a few hundred different instructions, we'll spend a lot of time just dispatching to the relevant piece of code for executing the instruction at hand.

Threaded code behaves rather as we imagine pattern matching behaves. We instantly find the right piece of code to execute without having to go through a plethora of other options first. This considerably speeds up execution times.

Later we'll see that pattern matching actually doesn't work in this magical way, but the notion of it doing so illustrates the advantage of threaded code.

At the end of the day, a purely stack-based machine picks simplicity over performance. Of course, the JVM for example then adds a ton of tricks to regain the potentially lost performance. Code hotspot analysis, multiple steps of optimisations, just-in-time compilation to native code, and so on, and so forth.

Multiple clauses, guards, floats


def impractical(x) when is_integer(x), do: x + 1
def impractical(x) when is_float(x), do: x / 2
def impractical(_), do: :batman

Multiple clauses, guards, floats (disassembled)


000000001574CBC0: i_func_info_IaaI 0 'Elixir.Virtually' impractical 1
000000001574CBE8: is_integer_fr f(000000001574CC20) x(0)
000000001574CBF8: i_increment_rIId x(0) 1 1 x(0)
000000001574CC18: return
000000001574CC20: is_float_fr f(000000001574CCB0) x(0)
000000001574CC30: test_heap_It 2 1
000000001574CC40: fmove_dl x(0) fr(0)
000000001574CC58: fmove_ql 2.000000e+00 fr(1)
000000001574CC70: i_fdiv_lll fr(0) fr(1) fr(0)
000000001574CC90: fmove_ld fr(0) x(0)
000000001574CCA8: return
000000001574CCB0: move_return_cr batman x(0)

Multiple clauses, guards, floats (disassembled)


000000001574CBC0: i_func_info_IaaI 0 'Elixir.Virtually' impractical 1


000000001574CBE8: is_integer_fr f(000000001574CC20) x(0)
000000001574CBF8: i_increment_rIId x(0) 1 1 x(0)
000000001574CC18: return


000000001574CC20: is_float_fr f(000000001574CCB0) x(0)
000000001574CC30: test_heap_It 2 1
000000001574CC40: fmove_dl x(0) fr(0)
000000001574CC58: fmove_ql 2.000000e+00 fr(1)
000000001574CC70: i_fdiv_lll fr(0) fr(1) fr(0)
000000001574CC90: fmove_ld fr(0) x(0)
000000001574CCA8: return


000000001574CCB0: move_return_cr batman x(0)

We only have one I_FUNC_INFO, denoting that yes, this is in fact a single function. The "is_integer" instruction checks if the second operand, the X0 register, contains an integer. If so, execution continues with the next instruction. If it isn't we jump to the address indicated by the first operand.

Let's assume we do get an integer. The I_INCREMENT instruction not only adds the two first operands and places the result in the fourth, in this case X0 = X0 + 1, but its third operand indicates the number of "live" registers. A live register is a register that shouldn't be garbage collected. In this manner, several instructions combine some desired operation with cleaning up.

With the incremented integer in X0, the RETURN instruction takes us back to where the "continuation pointer" or CP register points at.

What's the continuation pointer? We don't see it in the code, but when calling a function, such as this one, the call instruction will store a pointer, on the stack, to the next instruction to execute once the function call returns. This pointer is called the continuation pointer.

Now, had this function not been passed an integer as argument, but rather a float, the next several instructions handle that. Let's go through them one by one.

Like is_integer, is_float checks that we do have a float in X0. If not, skip this block of code.

test_heap ensures that we have some free memory on the heap. Why? I’m not sure to be honest. It also indicates that we have one “live” register so X0 is not marked for garbage collection.

The first FMOVE will move the floating point number from X0 into a floating point register, FR0. The second FMOVE places the value 2.0 in the FR1 register. Next up is the I_FDIV instruction which divides FR0 with FR1, placing the result back in FR0.

A third and final “fmove” instruction copies the result back into the X0 register before we return to the calling function.

Finally, if the function is called with neither an integer nor a float, we move the atom "batman" into register X0 and return control to the calling function. Once again, the two operations have been rolled into a single superinstruction.

BEAM registers

Register	Purpose	In code
R0 - R255	general purpose	x(n)
FR0 - FR15	floating-point operations	fr(n)
tmpA, tmpB	temporary	not visible
stack slots	local variables	y(n)

In the float handling part, we encountered the use of a new type of register, FR0 and FR1. Just like many real CPU:s, the BEAM has separate registers for floating point numbers. We still need to receive and return the float in an ordinary register, but we can only perform floating point operations on floating point registers.

In addition, there are two more special variables that behave like registers; tmpA and tmpB. These hold all manner of values used by arithmetic or logical operations. They're also used for building bitstrings.

To make things slightly more complicated, the BEAM also can allocate space on the stack for local variables, or so called "stack slots". However, passing parameters to a function is only done through the use of the general purpose registers.

In disassembled Elixir code, a stack slot is indicated by a "Y" and the number of the stack slot. We've previously seen that general registers are indicated by an “X” and a number, whereas floating point registers are denoted by “FR" and a number. The tmpA and tmpB variables aren't visible in the code, but rather implicitly used by various instructions.

Parrot registers

Register	Purpose
I	native integer type
N	floating-point numbers
S	strings
P	PMC (Polymorphic Container)

Function with receive block


def incommunicado do
  receive do
    {:ping, sender} -> send sender, :pong
    _               -> :ignore
  end
  incommunicado
end

Function with receive block (disassembled)


000000001A9C1468: i_func_info_IaaI 0 'Elixir.Virtually' incommunicado 0
000000001A9C1490: allocate_tt 0 0
000000001A9C14A0: i_loop_rec_fr f(000000001A9C1558) x(0)
000000001A9C14B0: is_tuple_of_arity_frA f(000000001A9C1540) x(0) 2
000000001A9C14C8: extract_next_element2_x x(1)
000000001A9C14D8: i_is_eq_exact_immed_fxc f(000000001A9C1540) x(1) ping
000000001A9C14F8: remove_message
000000001A9C1500: move_x1_c pong
000000001A9C1510: move_xr x(2) x(0)
000000001A9C1520: call_bif_e erlang:send/2
000000001A9C1530: i_is_lt_spec_frr f(000000001A9C1568) x(0) x(0)
000000001A9C1540: remove_message
000000001A9C1548: i_is_lt_spec_frr f(000000001A9C1568) x(0) x(0)
000000001A9C1558: wait_f f(000000001A9C14A0)
000000001A9C1568: i_call_last_fP 'Elixir.Virtually':incommunicado/0 0

Function with receive block (disassembled)


000000001A9C1468: i_func_info_IaaI 0 'Elixir.Virtually' incommunicado 0
000000001A9C1490: allocate_tt 0 0
000000001A9C14A0: i_loop_rec_fr f(000000001A9C1558) x(0)


000000001A9C14B0: is_tuple_of_arity_frA f(000000001A9C1540) x(0) 2
000000001A9C14C8: extract_next_element2_x x(1)
000000001A9C14D8: i_is_eq_exact_immed_fxc f(000000001A9C1540) x(1) ping


000000001A9C14F8: remove_message
000000001A9C1500: move_x1_c pong
000000001A9C1510: move_xr x(2) x(0)
000000001A9C1520: call_bif_e erlang:send/2
000000001A9C1530: i_is_lt_spec_frr f(000000001A9C1568) x(0) x(0)


000000001A9C1540: remove_message
000000001A9C1548: i_is_lt_spec_frr f(000000001A9C1568) x(0) x(0)


000000001A9C1558: wait_f f(000000001A9C14A0)


000000001A9C1568: i_call_last_fP 'Elixir.Virtually':incommunicado/0 0

We start off by allocating no slots on the stack and declaring no registers as "live”. This is a way of stating that we don't care about any argument registers so feel free to garbage collect them.

With the I_LOOP_REC instruction, we move on to picking up the next message in our inbox and place it in register X0. If there is none we'll jump to a memory location that happens to be pointing to the wait instruction. As you might know, when waiting for a message to arrive in its inbox, a process is put to sleep so that it doesn’t consume any resources.

Once we've received a message, we check if it's a tuple of arity 2. Behind the scenes, if X0 at least contains a tuple, it will be stored in the tmpA temporary variable.

We then extract two elements from the tuple in tmpA, placing the first in X1 and the second in X2. The EXTRACT_NEXT_ELEMENT2 instruction is only given a single argument, the first register to use for the first element. It will implicitly use the next register for the second element.

If the first tuple element, now in register X1, turns out to be the atom "ping" we continue.

Removing the message from the inbox, we put the atom "pong" in X1. We then move the contents of X2 into X0. As you might recall, this was the second element of the received tuple, and thus the PID of the sender of the "ping" message.

Subsequently we call the built-in function "send/2". As that function takes two parameters, X0 will contain the receiver of our message and X1 will contain the contents of our message; in this case the atom "pong".

Finally, we'll jump ahead to the last instruction of the function in a convoluted way by NOT jumping if and only if X0 is less than itself which it obviously can't be.

Now, if we didn't receive a tuple with two elements or if the first element wasn't the atom "ping", we end up at the next instruction. We remove the message and then skip ahead to the last instruction in the same convoluted manner.

The last instruction, I_CALL_LAST, will call the "incommunicado" function again.This is an example of a tail call elimination, i.e. the proper way to do tail recursion. It's a GOTO that can be considered anything but harmful.

Given that messages are integral to the concurrency model it's not surprising to find a few instructions dealing with them.

VM-specific instructions

VM	Instructions
BEAM	message handling (send, remove message) type checks (is_integer, is_tuple)
Parrot	trigonemetrics (sin, cos, atan) (Dynamically loaded if requested)
JVM	multianewarray (allocate a multi-dimensional array)

While most virtual machines have similar basic instructions for loading, storing, and manipulating data, for example adding two numbers, it's interesting to notice what different machine builders deem important enough to turn into instructions.

We've already seen that BEAM has message-handling instructions. We've also seen that it has specific instructions for testing if a register contains a value of a specific type. Actually, there's a one-to-one correlation between these type checking instructions and allowed type checks in guard clauses.

Parrot comes with a number of mathematical instructions such as sine, cosine, and arctangent. Instructions that in other machines would be composed of several more primitive floating point instructions. To be entirely honest, these aren't part of the core parrot instruction set, but are dynamically loadable at runtime. In effect you can tell the VM how to behave and what instructions to understand which is pretty nifty.

Java naturally has a number of instructions for loading and allocating new objects. My favourite is "multianewarray" which allocates space on the heap for a multidimensional array. Ideal if you want to instantiate something like a spreadsheet or a business intelligence cube. If you've ever wondered why Java has such an Enterprise-y feel to it, now you know.

Ok, a brief glimpse of one final example before we end this show.

3 lines of Elixir...


def intractable({x, y}) do
  "The afterparty will be at #{x}, #{y}."
end

...becomes 31 instructions...


000000001574CE10: i_func_info_IaaI 0 'Elixir.Virtually' intractable 1
000000001574CE38: is_tuple_of_arity_frA f(000000001574CE10) x(0) 2
000000001574CE50: allocate_zero_tt 2 1
000000001574CE60: i_get_tuple_element_rPx x(0) 0 x(1)
000000001574CE78: extract_next_element_y y(1)
000000001574CE88: is_binary_fx f(000000001574CEB8) x(1)
000000001574CEA0: move_jump_fx f(000000001574CED8) x(1)
000000001574CEB8: move_xr x(1) x(0)
000000001574CEC8: i_call_ext_e 'Elixir.String.Chars':to_string/1
000000001574CED8: move_ry x(0) y(0)
000000001574CEE8: is_binary_fy f(000000001574CF18) y(1)
000000001574CF00: move_jump_fy f(000000001574CF48) y(1)
000000001574CF18: move_yr y(1) x(0)
000000001574CF28: init_y y(1)
000000001574CF38: i_call_ext_e 'Elixir.String.Chars':to_string/1
000000001574CF48: move_x1_c 0
000000001574CF58: i_gc_bif1_jIsId j(0000000000000000) 348929271 x(0) 2 x(2)
000000001574CF88: i_fetch_xx x(1) x(2)
000000001574CF98: i_bs_add_jId j(0000000000000000) 1 x(1)
000000001574CFB8: i_gc_bif1_jIsId j(0000000000000000) 348929271 y(0) 2 x(2)
000000001574CFE8: i_fetch_xx x(1) x(2)
000000001574CFF8: i_bs_add_jId j(0000000000000000) 1 x(1)
000000001574D018: i_fetch_xc x(1) 29
000000001574D030: i_bs_add_jId j(0000000000000000) 1 x(1)
000000001574D050: i_bs_init_fail_xjId x(1) j(0000000000000000) 1 x(1)
000000001574D078: bs_put_string_II 26 359977936
000000001574D090: i_new_bs_put_binary_all_jsI j(0000000000000000) y(0) 8
000000001574D0B0: bs_put_string_II 2 359977962
000000001574D0C8: i_new_bs_put_binary_all_jsI j(0000000000000000) x(0) 8
000000001574D0E8: bs_put_string_II 1 359977964
000000001574D100: move_deallocate_return_xrQ x(1) x(0) 2

...and up to 4 function calls.


000000001574CE10:
000000001574CE38:
000000001574CE50:
000000001574CE60:
000000001574CE78:
000000001574CE88:
000000001574CEA0:
000000001574CEB8:
000000001574CEC8: i_call_ext_e 'Elixir.String.Chars':to_string/1
000000001574CED8:
000000001574CEE8:
000000001574CF00:
000000001574CF18:
000000001574CF28:
000000001574CF38: i_call_ext_e 'Elixir.String.Chars':to_string/1
000000001574CF48:
000000001574CF58: i_gc_bif1_jIsId j(0000000000000000) 348929271 x(0) 2 x(2)
000000001574CF88:
000000001574CF98:
000000001574CFB8: i_gc_bif1_jIsId j(0000000000000000) 348929271 y(0) 2 x(2)
000000001574CFE8:
000000001574CFF8:
000000001574D018:
000000001574D030:
000000001574D050:
000000001574D078:
000000001574D090:
000000001574D0B0:
000000001574D0C8:
000000001574D0E8:
000000001574D100:

Disassemble some Elixir...


0000000014FC0CA8: i_func_info_IaaI 0 'Elixir.Enum' each 2
0000000014FC0CD0: is_list_fr f(0000000014FC0D18) x(0)
0000000014FC0CE0: allocate_tt 0 2
0000000014FC0CF0: i_call_f 'Elixir.Enum':'-each/2-lists^foreach/1-0-'/2
0000000014FC0D00: move_deallocate_return_crQ ok x(0) 0
0000000014FC0D18: allocate_tt 1 2
0000000014FC0D28: move_ry x(0) y(0)
0000000014FC0D38: move_xr x(1) x(0)
0000000014FC0D48: i_make_fun_It 344639352 1
0000000014FC0D60: move_x1_c nil
0000000014FC0D70: move_rx x(0) x(2)
0000000014FC0D80: move_yr y(0) x(0)
0000000014FC0D90: i_trim_I 1
0000000014FC0DA0: i_call_f 'Elixir.Enum':reduce/3
0000000014FC0DB0: move_deallocate_return_crQ ok x(0) 0

...or Erlang


00000000161A5970: i_func_info_IaaI 0 erts_debug size 3
00000000161A5998: is_nonempty_list_allocate_frIt f(00000000161A5B00) x(0) 4 3
00000000161A59B0: get_list_ryy x(0) y(3) y(2)
00000000161A59C0: move2_xyxy x(2) y(0) x(1) y(1)
00000000161A59D0: i_call_f erts_debug:remember_term/2
...               ...

Yes, disassemble the function that disassemble functions and study it.

That's your idea of fun?

"Reasonable" assumptions

The Erlang/OTP team will be around forever.
They will always be eager to work on things that matter to Elixir.

A few possibilities

Contribute to the core of Erlang/OTP.
Ensure the BEAM's future by spreading the knowledge.
Ensure Elixir's future by implementing alternative, compatible VM:s.

You've been virtually instructed by

Lennart Fridén

codecoupled.org | @DevLCSC | github.com/DevL

ElixirConf 2015, Austin, TX
